| MODEL NO |
GSL-A51100 |
|
| Battery Chemistry | LiFePO4 | |
|
Capacity (Ah) |
100 |
|
| Scalability | Max.16pcs in parallel (81.92kWh) | |
|
Nominal Voltage (V) |
51.2 | |
| Operating Voltage(V) | 46-56 | |
|
Energy (kWh) |
5.12 | |
|
Usable Energy (kWh) |
4.61 | |
|
Charge/Discharge Current (A) |
Recommend |
100 |
|
Max. |
100 | |
|
Maximun Discharge C rate |
1C | |
| Other Parameter | ||
| Recommend Depth of Discharge | 90% | |

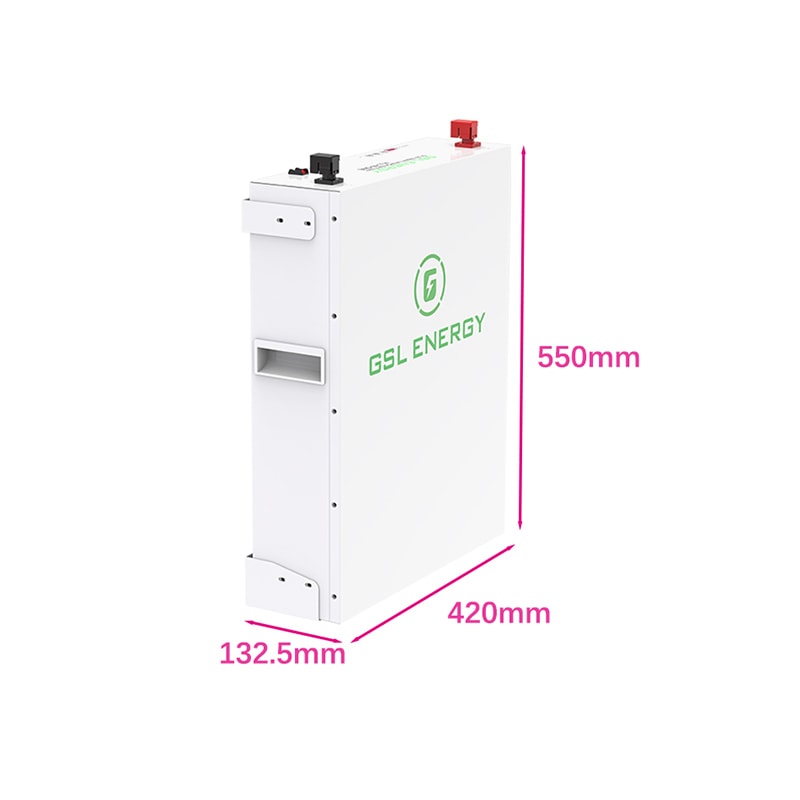

| Dimension (W/H/D,mm) | 420*550*132.5 | |
|
Weight Approximate (kg) |
45 | |
| Master LED Indicator | 4 LED (SOC:25%~100%) | |
|
2 LED (working, alarming, protecting)
|
||
|
IP Rating of Enclosur |
IP20 | |
| Working Temperature | Charge:0℃～55℃ Discharge:-20℃～55℃ | |
|
Storage Temperature |
0℃～35℃ | |
| Humidity | 5%~95% | |
| Altitude | ≤2000m | |
| Cycle Life (25±2℃,0.5C/0.5C,80%EOL) | ≥6000 | |
| Installation |
19inch Rack-mounted
|
|
| Communication Port | CAN2.0, RS485 | |
| Warranty Period [3] | 5 years | |
| Life Cycle Power During Warranty Period |
22.42MWh@80% EOL |
|
| Certification | CB-IEC62619, CE-EMC, MSDS, UN38.3 | |
