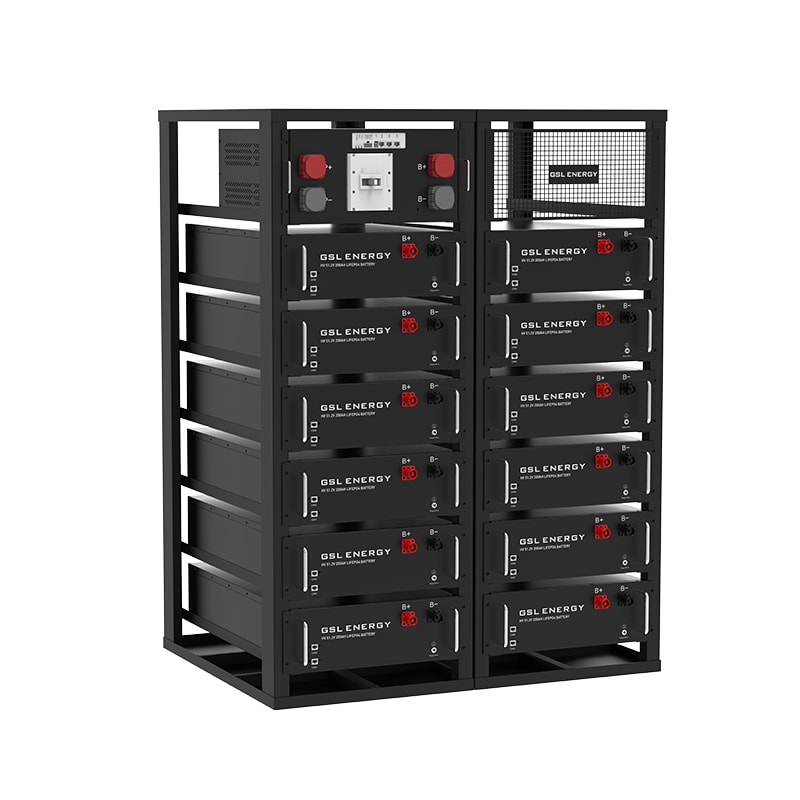

HV Battery GSL-R80~140K


HV Battery GSL-R80~140K

GSL’s power storage wall ESS adopts the latest HESS battery system. With rich experience and advanced techniques, this kind of home battery provides house battery backup for emergency use, it has the features of the fashionable design, high energy, high power density, long service life, and easiness of installation and expansion.

Our ESS can provide comprehensive energy storage for residential, commercial and utility applications. Our Li-ion battery portfolio covers cells, modules, cabinets (indoor/outdoor) and containers, which offer customers excellent scalability and adaptability to a wide variety of requirements.

Model No GSL-R80K
GSL-R100K GSL-R120K GSL-R140K
Nominal Capacity
81.92kWh 102.4kWh 122.88kWh 143.36kWh
Cell Matching
128S1P

160S1P 192S1P 224S1P

Working Voltage Range

136.8-172.81V
182.4-230.4V
228-288V
273.6-345.6V

Nominal Voltage

409.6V

512V 614.4V 716.8V

Weight

843.7kg 1029.7kg 1215.6kg 1401.6kg

Dimension (WxDxH)
1200*950*1220mm 1200*950*1400mm 1200*950*1580mm 1200*950*1760mm

Battery Type
LFP(LiFePO4)

Nominal Working Current
100A
Communication Port

CAN/RS485
Working Temperature Rang
Charge:0-45°C/Discharge:-10-50°C
Waterproof
IP55
Installation Method
Floor-standing
Cycle Life
10 years

Peak Charge/Discharge Current

(@25°C,5S)

150A
Discharge Rate of Module
≤3.5%/month/@25°C
Parallel Connection
32 units in parallel
