HV Battery GSL-R115~200K


HV Battery GSL-R115~200K

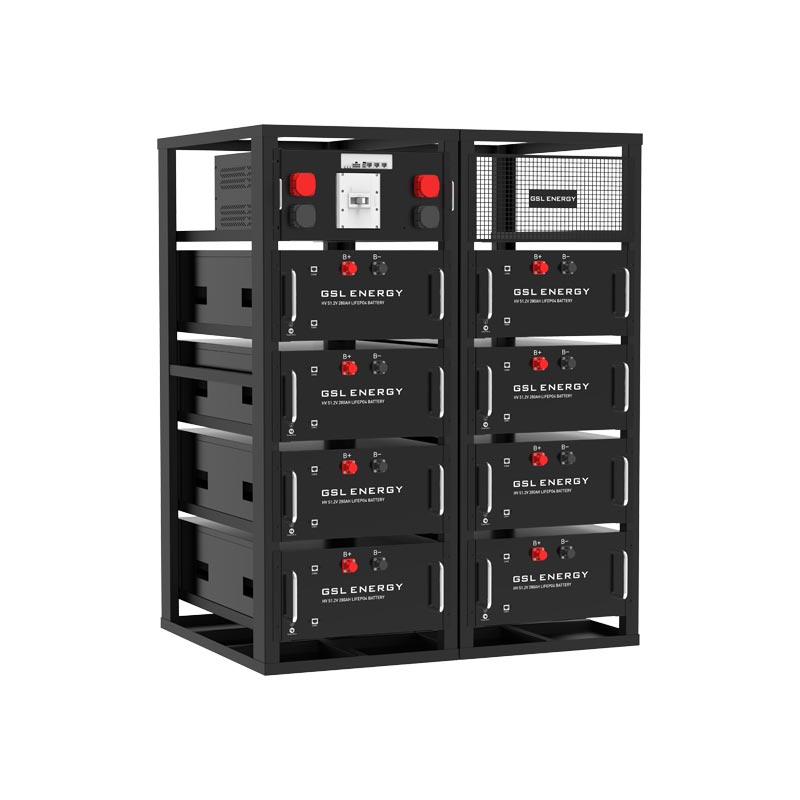

GSL’s power storage wall ESS adopts the latest HESS battery system. With rich experience and advanced techniques, this kind of home battery provides house battery backup for emergency use, it has the features of the fashionable design, high energy, high power density, long service life, and easiness of installation and expansion. Our ESS can provide comprehensive energy storage for residential, commercial and utility applications. Our Li-ion battery portfolio covers cells, modules, cabinets (indoor/outdoor) and containers, which offer customers excellent scalability and adaptability to a wide variety of requirements.

Model No GSL-R115K
GSL-R143K GSL-R172K GSL-R200K
Nominal Capacity
114.72kWh 143.4kWh 172.08kWh 200.76kWh
Cell Matching
128S1P

160S1P 192S1P 224S1P

Working Voltage Range

176-233.6V
264-350V
440-584V
604.8-806

Nominal Voltage

409.6V

512V 614.4V 716.8V

Weight

1115.5kg 1370kg 1624.5kg 1879kg

Dimension (WxDxH)
1200*1000*1533.3mm 1200*1000*1800mm 1200*1000*2066.7mm 1200*1000*2066.7mm

Battery Type
LFP(LiFePO4)

Nominal Working Current
140A
Communication Port

CAN/RS485
Working Temperature Rang
Charge:0-45°C/Discharge:-10-50°C
Waterproof
IP55
Installation Method
Floor-standing
Cycle Life
10 years

Peak Charge/Discharge Current

(@25°C,5S)

200A
Discharge Rate of Module
≤3.5%/month/@25°C
Parallel Connection
32 units in parallel
